Home Cinema

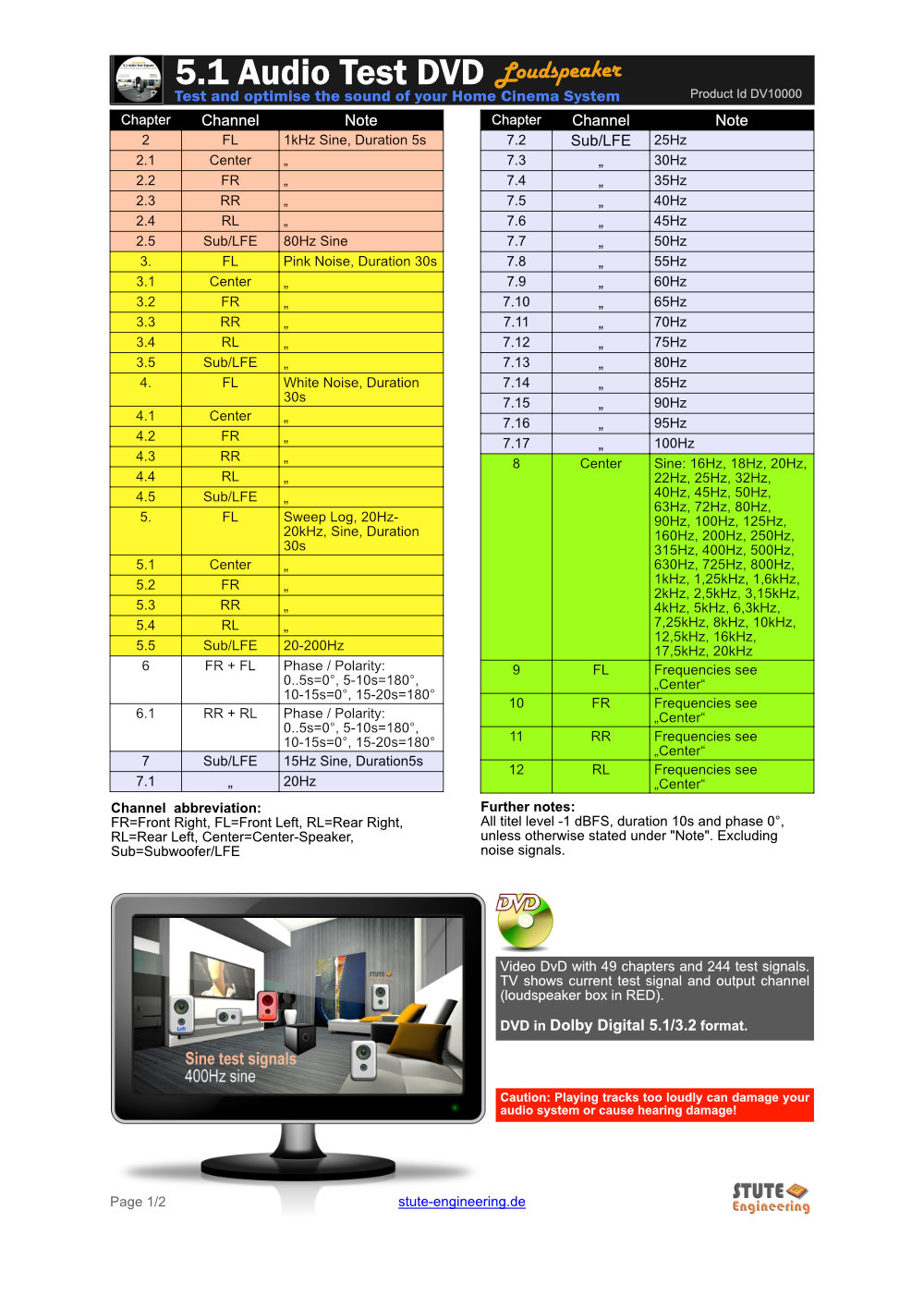

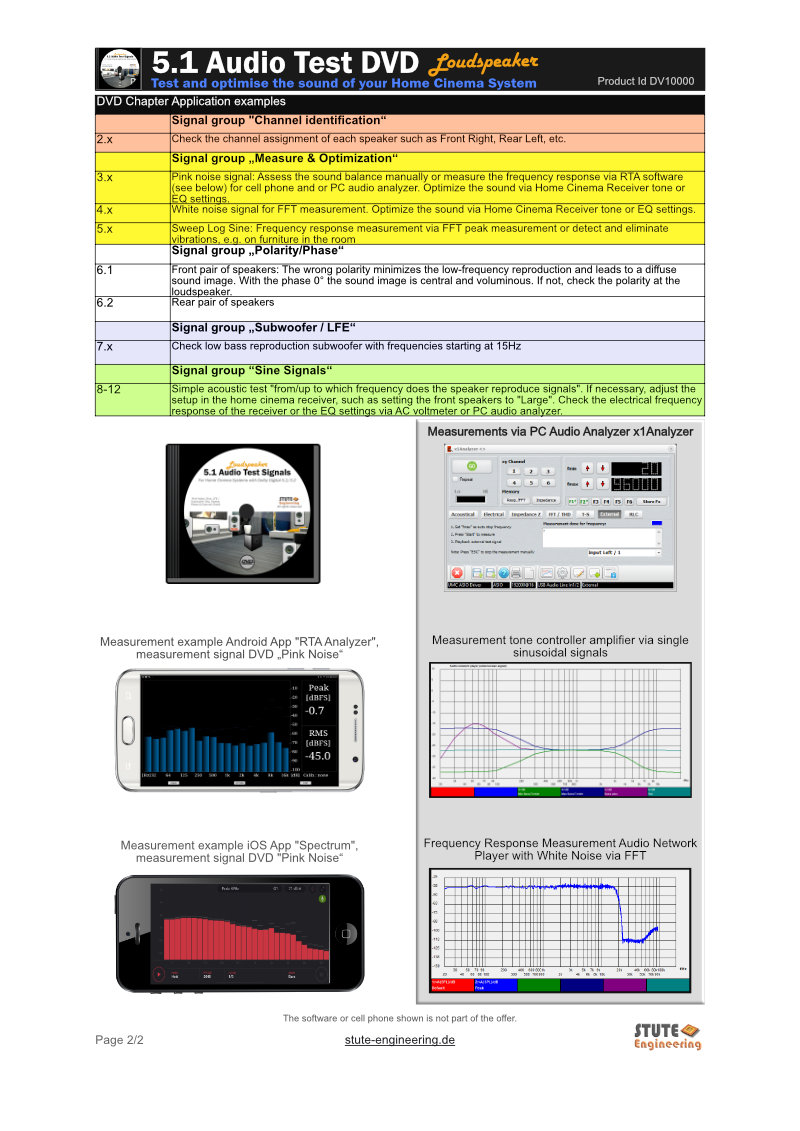

5.1 Surround Sound AUDIO Test DVD

For quick and easy checking and optimization of your home cinema system

  • 244 test signals
  • Dolby Digital 5.1: Front Right & Left, Rear Right & Left, Center, Subwoofer/LFE
  • Video DVD with 49 chapter
  • TV views signal details and current output loudspeaker channel
  • Frequency measurement via Handy App (see picture below)
  • Acoustic checks of your system: channel assignment / polarity
  • Subwoofer test with frequencies from 15 Hz
  • Identify vibration from the cabinet, speaker or room



Application

  • Measurement of frequency response using "Pink Noise" and free "RTA Analyzer" app for mobile phone (see pictures)
  • Measuring frequency response using "white noise" and free FFT mobile phone app or PC audio analyzer
  • Sound improvement by measuring and correcting the frequency response via EQ / tone control of the home cinema receiver
  • Acoustic subwoofer test with signals starting at 15Hz
  • Acoustic test of channel assignment (correctly wired?)
  • Acoustic test speaker polarity (+/- reversed?)
  • Identification of vibrations in the loudspeaker, stand or furniture with sine or sweep signal
  • and more...

For use as listening tests or with manufacturer-independent measurement software/tool such as a free mobile phone "RTA analyser" app or a PC audio analyser software, like stute.x1A.

HOME HIFI

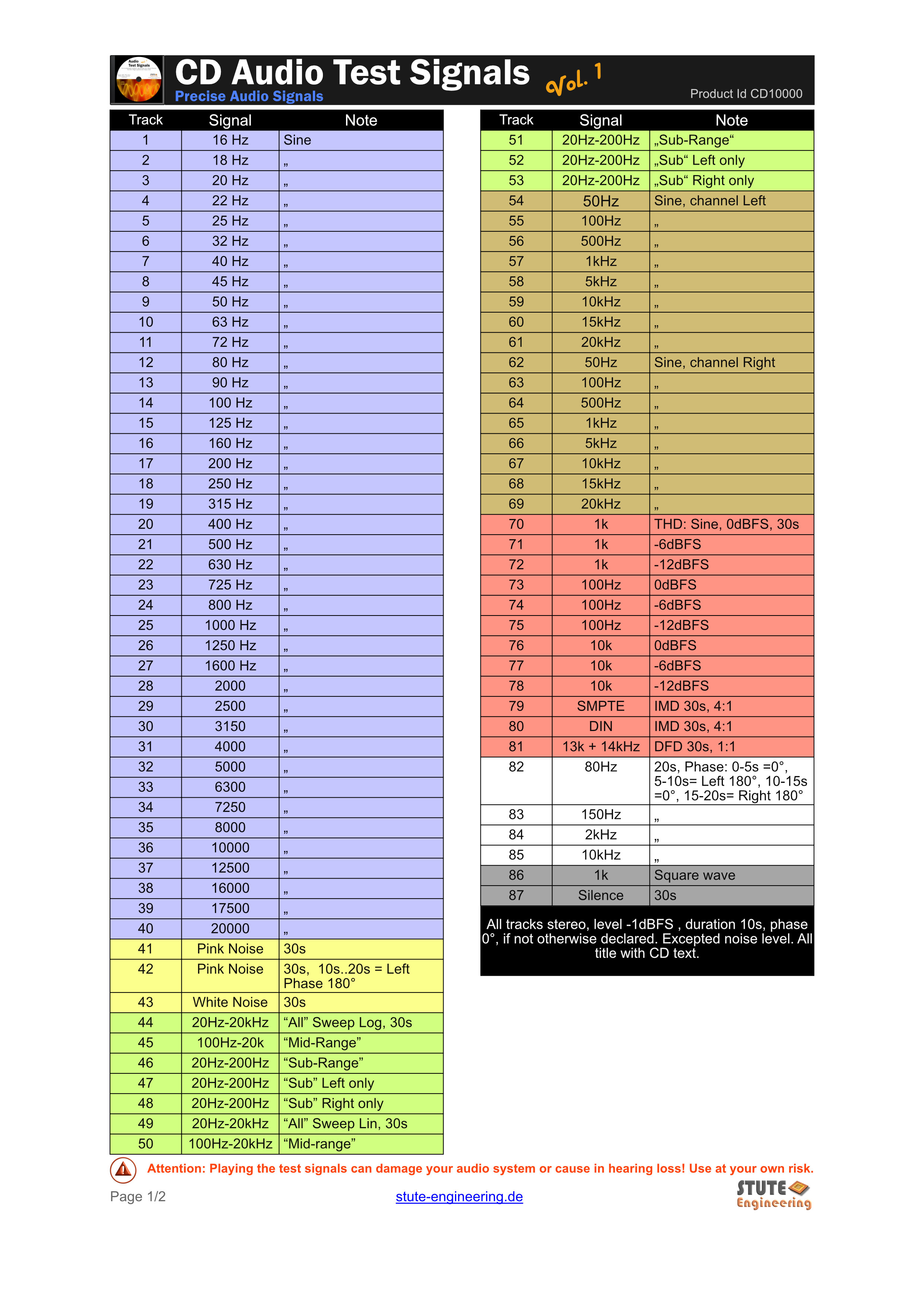

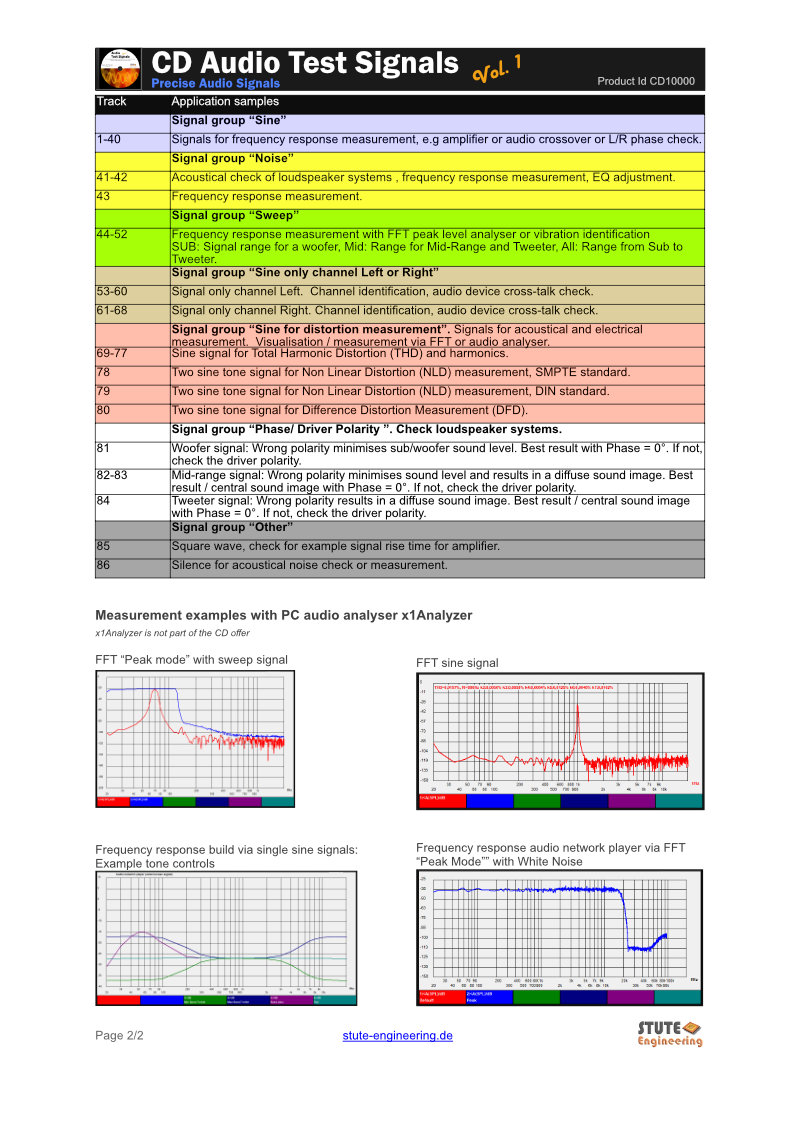

AUDIO TEST CD

  • 86 tracks for test and setup
  • Audio CD for HiFi or Car CD drives, DvD drives
  • CD Text with track information
  • Loudspeaker test or burn-in process
  • HiFi or Home cinema check
  • DJ or PA sound systems check
  • Audio test, like frequency response or signal distortion (incl. IMD and DFD)
  • Phase, channel check
  • Loudspeaker position adjustment
  • Vibration identification: Enclosure, room equipment, bass reflex port
HOME hifi

Application

  • Identify frequency response issues
  • Check loudspeaker driver polarity
  • Visualize or measure signal distortion: THD, IMD, DFD
  • Identify vibrations due to loudspeaker enclosures issues, driver assembling or in room equipment
  • Channel cross talk test
  • Amplifier rise time check
  • Test EQ or tone control functions
  • Check L/R channel assignment
  • Audio crossover check via AC voltmeter
  • Signal types: Sine, Sweep, Noise, Phase, Double-Sine, Rectangle
  • Also ideal for the usage in combination with an Audio Analyzer
  • and many more

Applicable with HiFi or CAR CD Player, DVD Player and PC CD drives. For use as listening tests or with manufacturer-independent audio measurement tool or software.
