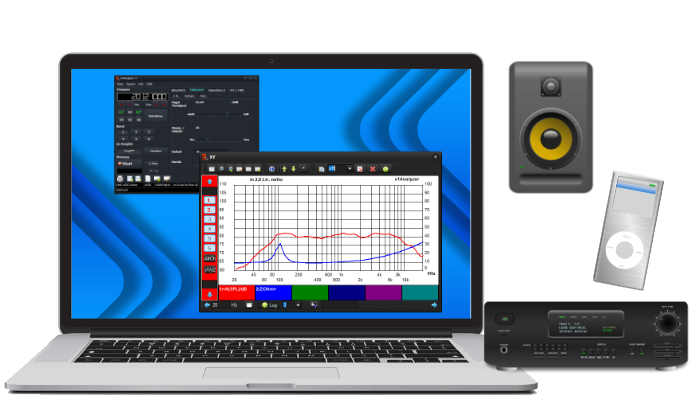

x1Analyzer

Precise and simple

audio measurements up to 90kHz

Slide

Applications

Driver & Loudspeaker box

Identify and correct weak points in the speaker cabinet

Car Hifi

Carry out acoustic measurements in the car and optimize your system.

Amplifier

Check: transmission behavior, tone control - loudness - EQ, distortion measurement

Filter

Does the crossover match the drivers?

MP3, Network Player, Bluetooth

How good is the reproduction: transmission behavior and distortion?

Components

Determine the filter component values for R-L-C

Slide

Highlights

1. Supported sample rate of up to 192kHz
2. Frequency response correction of the sound card
3. Measurement with commercially available sound cards
4. 2x6 channel measurement memory
5. Continuous measurement
6. Microphone correction (TXT, Sonarworks, Dayton)
7. xy window shows up to 6 measurement curves simultaneously
8. Normalize and shift measurement curves

1. Remote control via x1Aremote app
2. Data transfer to x1Designer (freq. response & TS data)
3. Mathematical operations on the measurement curves
4. Cursor measurement delta x & y
5. 6 memory locations for preferred measuring ranges (fmin/fmax)
6. Text input for measurement and measurement channel
7. Copy measurement to the clipboard
8. Print output

Slide

Measurement types

Acoustic frequency response

1. Signal source: Audio interface
2. Frequency range: 20 Hz to 20000 Hz
3. SPL correct measurement, microphone correction
4. Automatic level adjustment
5. Export to x1Designer for simulation

Electrical frequency response (internal)

1. Signal source: Audio interface
2. Frequency range: 20 Hz to 90000 Hz 1)
3. Differential signal measurement ("Stereo mode" deactivated)
4. 10 to 100 measuring points per frequency decade (x10, e.g. 200 Hz to 2000 Hz)
5. Units: dB, dBV, mVtrms, μW(Z), dBm(Z), %

Electrical frequency response (external)

1. Signal source: "CD, MP3, WAV..."
2. Measuring: Bluetooth, MP3 or Audio Network Player
3. Frequency range: 20 Hz to 90000 Hz 1)
4. Automatic detection of test signals (frequency, start)
5. Automatic measurement stop by entering the "fmax" frequency
6. Test signal playback in any order

Impedance Z

1. Signal source: Audio interface
2. Frequency range: 20 Hz to 90000 Hz 1)
3. Internal signal source
4. Z Measuring range: 1 to 250 Ohm
5. 30 to 70 measuring points per frequency decade (x10)

FFT Spectrum

1. Signal source: Audio interface or external
2. Frequency range: 15 Hz to 90000 Hz 1)
3. FFT points 1024 to 65536, windows: Hanning, Hamming, Rectangle
4. Internal or external test signals
5. Internal signal source: -50dB..0dB, 20Hz..90kHz 1)
6. Average value from 1 to 10 measurements
7. PEAK Hold measurement
8. Frequency response with sweep or white noise

Distortion (THD)

1. Signal source: Audio interface or external
2. Frequency range 20 Hz to 90000 Hz 1)
3. Measurement of THD and the coefficients k2 to k7 in % plus frequency of the measurement signal
4. Internal test signal source: sine wave 20Hz to 90kHz 1) , level -50dB..0dB

Thiele Small Parameter

1. Calculation: Vas, Qts, Qes, Qms, fs, Nref, BL, Cms, Mms, SPL
2. Export to x1Designer for housing calculation and simulation

to x1Designer...

Component R-L-C

1. R: up to 100 Ohm 2)
2. L: up to 20 mH 2)
3. C: up to 100 μF 2)

1) With a sampling rate of 192 kHz. Sampling rates from 44.1 kHz to 192 kHz are supported.
2) Accuracy depends on calibration.



Check filter

Distortion loudspeaker box

Frequency response of entire speaker

Testing the driver: frequency response + impedance

Test audio network player. Signals from cell phone

Determine Thiele Small parameters (Vas, Qts..)

Check the tone control

Determine component values

Distortion (THD, k2..7) Amplifier

Impedance curve loudspeaker

Slide

x1Aremote

Measure independently from x1Analyzer location.

With x1Aremote you perform measurements independently of the position of the x1Analyzer measurement setup. This makes it easy to perform acoustic measurements from the listening position or outside the measurement room, for example.

Highlights

1. x1Aremote software is free of charge
2. Connection to x1A PC via local network
3. Choose measurement type
4. Set start/stop measurement frequency
5. Set frequency range via preset buttons
6. Select measurement channel
7. Display up to 6 channels parallel
8. Save measurement on the x1Analyzer PC
9. Zoom in/out in the measurement diagram
10. Share/copy measurement diagram

Multi-Plattform

You can use x1Aremote free of charge with your PC, laptop, tablet PC, or cell phone:

1. MS-Windows 1)
2. macOS 1)
3. Android 2)
4. iOS 2)

1) Download from our homepage
2) Download from App Store (Google / Apple)
Important: x1Analyzer Ver 2.8 is required to use x1Aremote.

Manual & Software

Download

Slide

System requirements x1Analyzer

PC Laptop

1. MS-Windows 10 or 11, 32 / 64 bit
2. USB Interface 2.0 or higher

Audio interface

1. Support audio interface with ASIO and WDM driver model
2. Sample rate 44,1kHz to 192kHz
3. Adjustable headphone output
4. 2 adjustable inputs
5. Microphone amplifier with 48V phantom power
6. Recommendation: Behringer U-Phoria UMC202HD

Interface x1S

1. Simple measuring interface to build yourself

Schematic

Acoustic measurements

1. Audio amplifier (20W or more)
2. Measurement microphone, such as the Behringer ECM8000
